ARC-5

All killer, no filler.

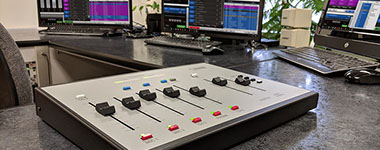

The ARC-5 broadcast radio console is the ultimate compact board. It is perfect for applications such as podcasting, production studios, on the road, as well as small broadcast or internet radio.



It comes standard with two mics, stereo line input, USB and mix-minus to connect to your phone hybrid. It gives you all the essentials at a fraction of the cost.

Compact, and durable.

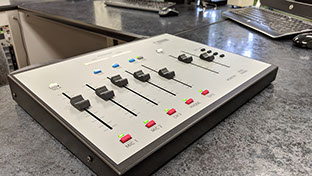

The ARC-5 radio console is compact and durable for professional Radio applications. The 0.059" steel chassis is extremely strong and well finished with a powder coat finish. The front panel graphics are on the reverse side of a beautiful polycarbonate overlay for scratch resistance and long life. The switches have LED lighted indicators to clearly display switch status. It is excellent for so many different applications, it would be foolish not to have one.



The ARC-8 broadcast and internet radio console has both balanced and unbalanced inputs.



Analog Broadcast Console.

5 Channel - 1 Stereo Output.

Impeccable performance.

All killer, no filler.

The ARC-5 board has all the essential elements for an audio mixer, and is a great value for its low price.



Its stereo input channel has both unbalanced & balanced connectors. It has 6 inputs, with 5 channels. Channel 5 is the USB channel that connects to a PC for playback and record. Channel 4 connects to a phone hybrid.



Logic control.

Switch cameras, or control external hardware with the press of a button. The ARC-5 comes with 4 logic buttons that send a dry contact closure to any 3rd party hardware. Whether you want to switch between cameras in your studio, or start an automation player, play jingles, or sound effects, the ARC-5 logic buttons give you complete control.



5 Types of Channels

  Microphone

2 High Performance mic channels. Perfect for a Guest/Host configuration.

High performance mic channels, with XLR inputs.

High performance mic preamps.

48 VDC phantom power.

(optional, $69)

Channel 1 features a Talk button to talk to a Studio monitor.

LED illuminated switch lamps.



  Stereo Line

1 Input, to connect any audio device.

A / B Input on channel 5, giving a total of 2 Stereo Line inputs.

Active balanced RJ-45 or unbalanced RCA comes standard on every ARC-5.

1 stereo output bus. Both balanced and unbalanced outputs.

LED illuminated switch lamps.

Phone

Phone channel comes standard, allowing you to connect to a phone hybrid.

Audio & Logic connections available to connect to hybrid.

Listen off-line to a caller using the Cue button.

Talkback button enables you to talk to the caller off-air.

Mix minus feed to the caller is a mix of Pgm.

LED illuminated switch lamps.

USB

Play & Record in digital with Windows PC or Mac.

USB sound card functionality to work with any software.

Simple connect using standard USB cable.

Play audio from your USB device directly onto your board.

Record audio from your board using any 3rd party software.

Assets come standard.

Balanced & Unbalanced Outputs

Pgm output has both XLR balanced, & RCA unbalanced outputs.

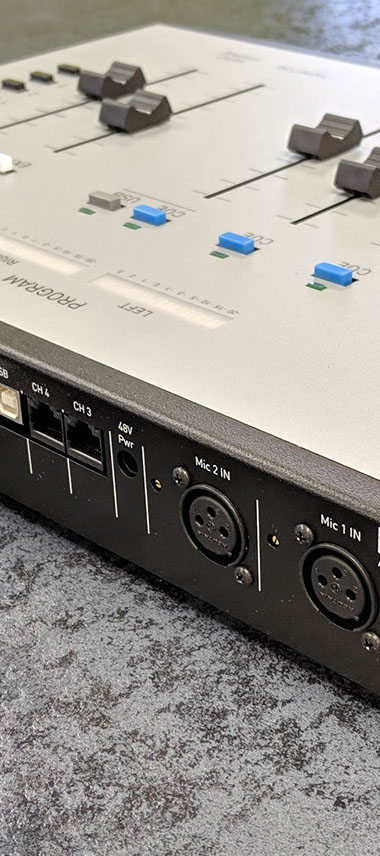

Balanced RJ45 Connectors

All Stereo inputs are world standard balanced RJ45 connectors. 10ft. Cabling is included, no charge. Unbalanced RCA inputs are also included

Linear Faders

Conductive plastic faders for highest possible resolution and life. Dust covers designed to protect and prolong the life of the fader.

Power Supply

The power supply is auto-sensing 110-220VAC. Certified: UL, CE, CS, CB. Perfect for use anywhere in the world.

Headphone

Headphone system with stereo amp for 8ohm (or Hi-Z) headphones. Plus Monitor and Cue systems.

Accessories

SIMPLE-IP

AoIP for Everyone.



Need audio over IP? Simple-IP is the solution. Connect any of our ARC or MARC series boards to Simple-IP to connect your boards over Ethernet. This simple and reliable solution will save you time and money.

ARC-MIC-PRE

Need additional microphone channels?



The ARC-MIC-PRE is a 2 channel mic preamp that can be directly connected to your balanced RJ45 console line inputs. This converts two of your line inputs into mic level inputs.



Learn more.



ARC-HP

Need additional headphone outputs?



The ARC-HP connects to your console output to give you an additional headphone output as well as logic I/O for Cough and Talkback. Need another headphone output? Daisy chain another ARC-HP to get as many outputs as needed.



Learn more.



APEX-Live is the ultimate live assist software for any Internet or Broadcast radio station. It is flexible, with customizable user interfaces; and powerful with numerous features. Use it in tandem with APEX, or as a stand alone software. And is FREE with our broadcast consoles.



Learn more.









Other Accessories.

Need cables, additional power supplies, phantom power supply, or other gear to help you get started? Go here.
