DARC Surface AoIP for Everyone.

Audio over IP does not need to be complicated or expensive. With the DARC Surface, you can control any Dante network audio source. Mix, adjust levels, everything you need for an On-Air or production room console.

A Digital AoIP Console designed for you.

starting at $3,700.

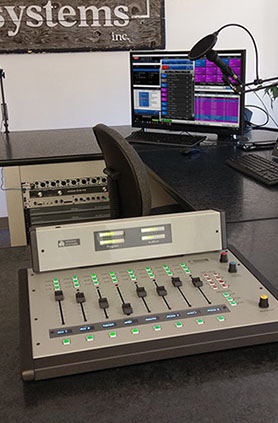

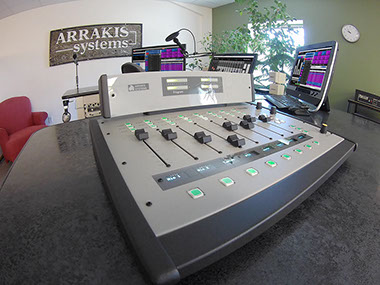

Meet DARC Surface, an intuitive, powerful Dante enabled Digital Console. It is a powerful mixing console that can control any source on your Dante AoIP network



Designed to be easy to setup, and use. Yet flexible and powerful for your needs today, and tomorrow.

Digital AoIP Broadcast Console.

8, 12 or 16 input channels.

2 Stereo output buses.

Simple & Effective

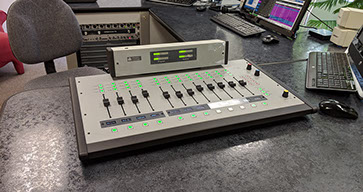

8, 12 or 16 Channel Models. DARC Surface comes in 3 different models. This means that you can choose what size best fit your needs. Whether the 8 with its small profile yet powerful design, or the 16, with all the faders you could ever need.

DARC Virtual Console Software. The DARC Virtual Software comes included in the package deals. The DARC Surface works in harmony with the DARC Virtual Console software.

Programmable Inputs & Outputs. Control anywhere in the world.

The DARC Surface is a Digital AoIP console. Being digital means that your audio is handled digitally, and there is no signal degradation within the board. It is protected from RF, and is very flexible.



Being AoIP means that the DARC Surface has access to any audio input or output on your Dante local network. Quickly select your inputs and outputs via the DARC Virtual Console software. OR swap assignments via the 4 programmable buttons on the DARC Surface.



Being Windows based, you can also use any remote control app to control your board anywhere in the world with an internet connection.



The DARC Surface is the ultimate in power, flexibility and value.





Stylish & Functional

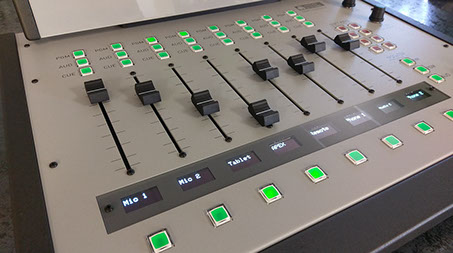

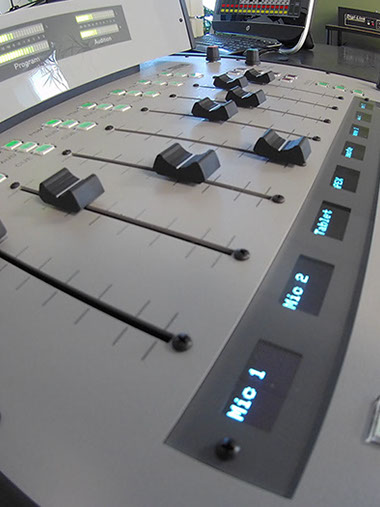

OLED Displays. The DARC Surface utilizes long life OLED displays. These displays show what source channels have been selected for each channel. These OLED displays are high contrast, easy to read and beautiful to match.

LED VU Meters. Complimenting the DARC Surface, we gave it two pairs of bright, 20 segment stereo bargraph LED VU Meters. These meters have an extremely long life span utilizing the latest in LED technology.

LED Switches. Momentary switches are 5 million operation & LED illuminated, for an extremely long life. No more need to replace switches or bulbs.

Compartmentalized. The DARC-Surface is sleekly designed with its compartmentalized design. All of your audio input and output wiring goes to your Simple IP units, while the DARC has limited wiring to make your studio stylish and functional.

Pure Digital Control Surface Experience

The DARC Surface is a pure digital control surface. All audio inputs & outputs are connected through the Simple IP Surface. And all audio is mixed via a Windows PC and the DARC Virtual software. The DARC Surface is simple a physical control surface that gives you control over the DARC Virtual software.



Installing the DARC Surface is quick and easy.  The only connections on the DARC Surface are a USB and an RJ45 for the DARC Surface LED Meter input.

  Microphone

Simple IP  Required

▪ 1 to 16 Mic channels. Your choice, your configuration. Simply connect your mics to the Simple IP inputs. Each Simple IP box allows you to connect up to 4 mic channels. Channels are software assignable.

▪ Mic Pre Needed. Simple IP are all high level stereo inputs. Mic channels require an external mic preamp with mono to stereo wiring.

▪ Mic Monitor Mute. Mic channels will automatically mute the monitor output when activated.

    Stereo Line

Simple IP  Required

▪ 1 to 16 Inputs. Software assignable line inputs. Simply connect your audio source outputs to the Simple IP inputs. Each Simple IP box allows you to connect up to 4 Stereo Line inputs.

▪ Analog I/O. Analog RJ45 inputs and outputs with the Simple-IP-8A.

▪ +4dBu or -10dBu analog inputs. Simple-IP-8A is jumper selectable between balanced +4dBu and unbalanced -10dBu inputs.

▪ LED illuminated switches.

Phone

Simple IP  Required

▪ Phone channel. Within the DARC software, choose to assign one of your I/O on the Simple IP to a phone mix-minus to connect to your phone hybrid.

▪ Mix-Minus. Once a channel has been assigned as a Phone channel in the software, it will configure to audio to work with your phone hybrid.

▪ Talkback. With the Phone channel setup, the first mic channel will have a Talkback function that allows you to talk to the caller off line.

▪ LED illuminated switches.

 Logic Outputs

Optional Add-on

▪ 2 Logic Output. As an optional add-on, add logic outputs to the DARC family. This USB logic output connects to your PC, and is controlled via the DARC Virtual Console software. This is programmable to turn on On-Air Lights, trigger phone hybrids, etc... This option gives you 2 relay outputs.

▪ 8 Logic Output. 2 outputs not enough? Get the 8 logic output USB control instead.



2 Output Buses

  Program - Audition - Monitor - Cue - Headphone

▪ PGM, AUD. DARC can assign output control to any output on your Dante network. This may be one of our Simple IP units, which has 4 stereo outputs per box.

▪ Monitor, Cue & Headphone outputs. Utilize the Cue function built in to the DARC software to play audio off-air through your monitor, cue or headphones. Monitor, Cue and Headphones all connect to your Simple IP unit.

▪ Mic Monitor Mute. Mic channels will automatically mute the monitor output and play audio through the headphones when activated. Talk back audio plays through headphones as well.

The ARC 15 is extremely powerful, with its 5 mic inputs and extra input channels. It is the flagship of any radio station.

Assets come standard.

RF Free

DARC Surface is a digital surface and does not have audio run through it. It is therefore a pure signal and RF free. All Stereo inputs and outputs on the Simple IP are also balanced for RF resistance.

Switches

Momentary switches are 5 million operation & LED illuminated, for an extremely long life. No more need to replace switches or bulbs.

Linear Faders

Conductive plastic faders for highest possible resolution and life. Dust covers designed to protect and prolong the life of the fader.

Power Supply

The power supply is auto-sensing 110-220VAC. Certified: UL, CE, CS, CB. Perfect for use anywhere in the world.

DARC Virtual Console

The DARC Virtual Console comes standard with DARC Surface bundle packages. This gives you tons of additional features at your fingertips.

Remote control from anywhere in the world.

4, 8, 12, or 16 input channels models.

3 stereo output Buses.

Phone Mix-minus bus for Telephone hybrid.

Analog Audio Inputs and Outputs.

Windows compatible.

Dante AoIP interstudio ethernet connectivity.

AES67 AoIP support to work with any network.



Bundle Packages

DARC Surface 8 with Simple IP

$3,700 ($2,900 in savings)

▪ DARC Surface 8 Console ($1,500)

▪ DARC Virtual Console software license FREE

▪ Qty 2 Simple IP ($2,000)

▪ PC not included

DARC Surface 12 with Simple IP

$5,200 ($2,900 in savings)

▪ DARC Surface 12 Console ($2,000)

▪ DARC Virtual Console software license FREE

▪ Qty 3 Simple IP  ($3,000)

▪ PC not included

Accessories

SIMPLE-IP

AoIP for Everyone.



Need audio over IP? Simple-IP is the solution. Connect any of our ARC or MARC series boards to Simple-IP to connect your boards over Ethernet. This simple and reliable solution will save you time and money.

Quickly connect any analog or digital audio source to play into a Dante audio network, at an extremely affordable price.



Configured PC

$1,099

Purchase a fully configured Dell Optiplex Micro from us. This PC will be ready for use out of the box to work with the DARC Virtual Console software. It will be ran in Kiosk mode and dedicated to the DARC Virtual Software for optimal reliability.



To qualify for software support for DARC, you must purchase a configured PC from us.



ARC-MIC-PRE

Need microphone channels?



The ARC-MIC-PRE is a 2 channel mic preamp that can be directly connected to your balanced RJ45 console line inputs on the Simple IP Nodes. This converts two of your line inputs into mic level inputs.



Learn more.



APEX-Live is the ultimate live assist software for any Internet or Broadcast radio station. It is flexible, with customizable user interfaces; and powerful with numerous features. Use it in tandem with APEX, or as a stand alone software. And is FREE with our broadcast consoles.



Learn more.









Other Accessories.

Need cables, additional power supplies, phantom power supply, or other gear to help you get started? Go here.
