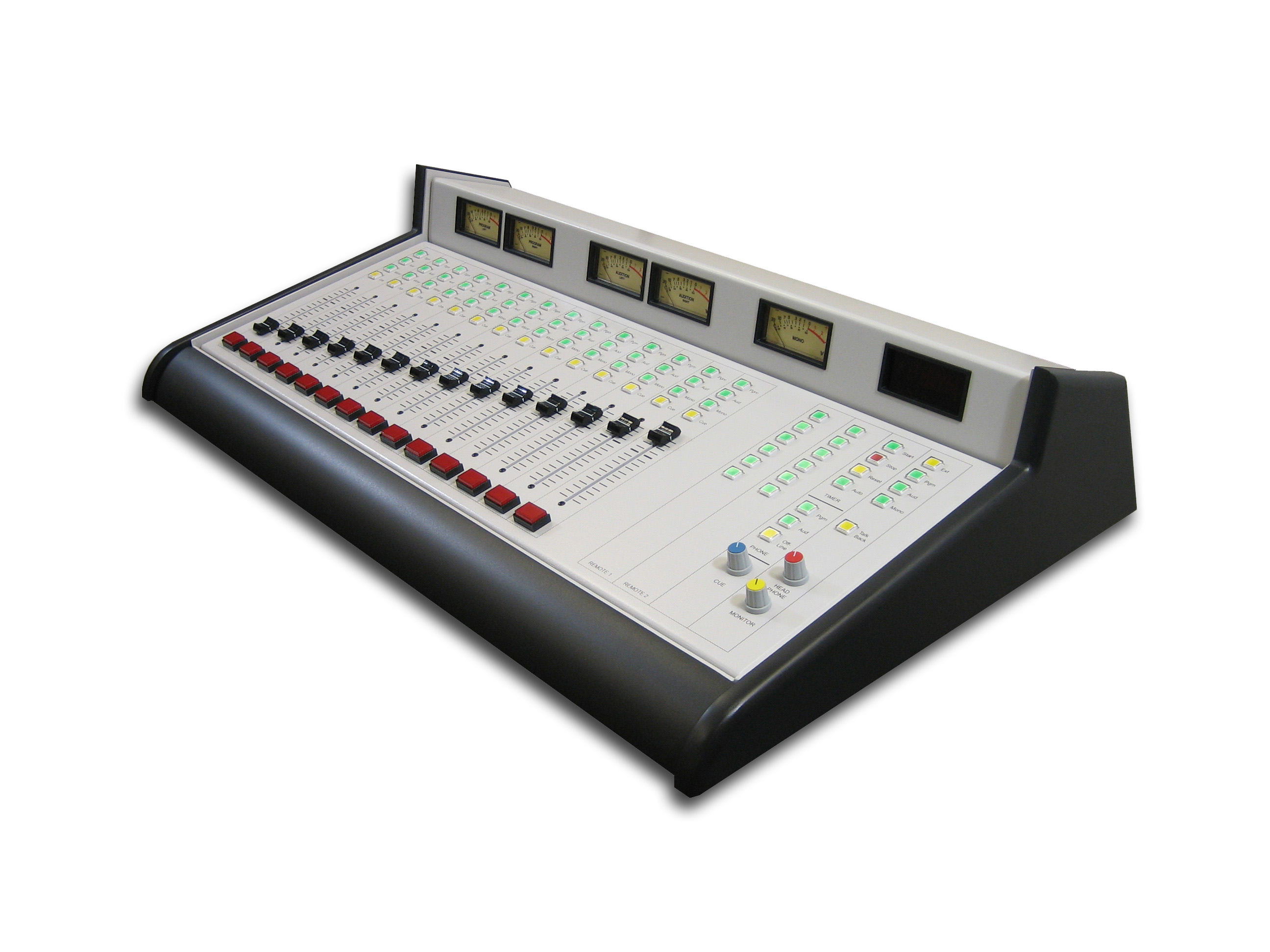

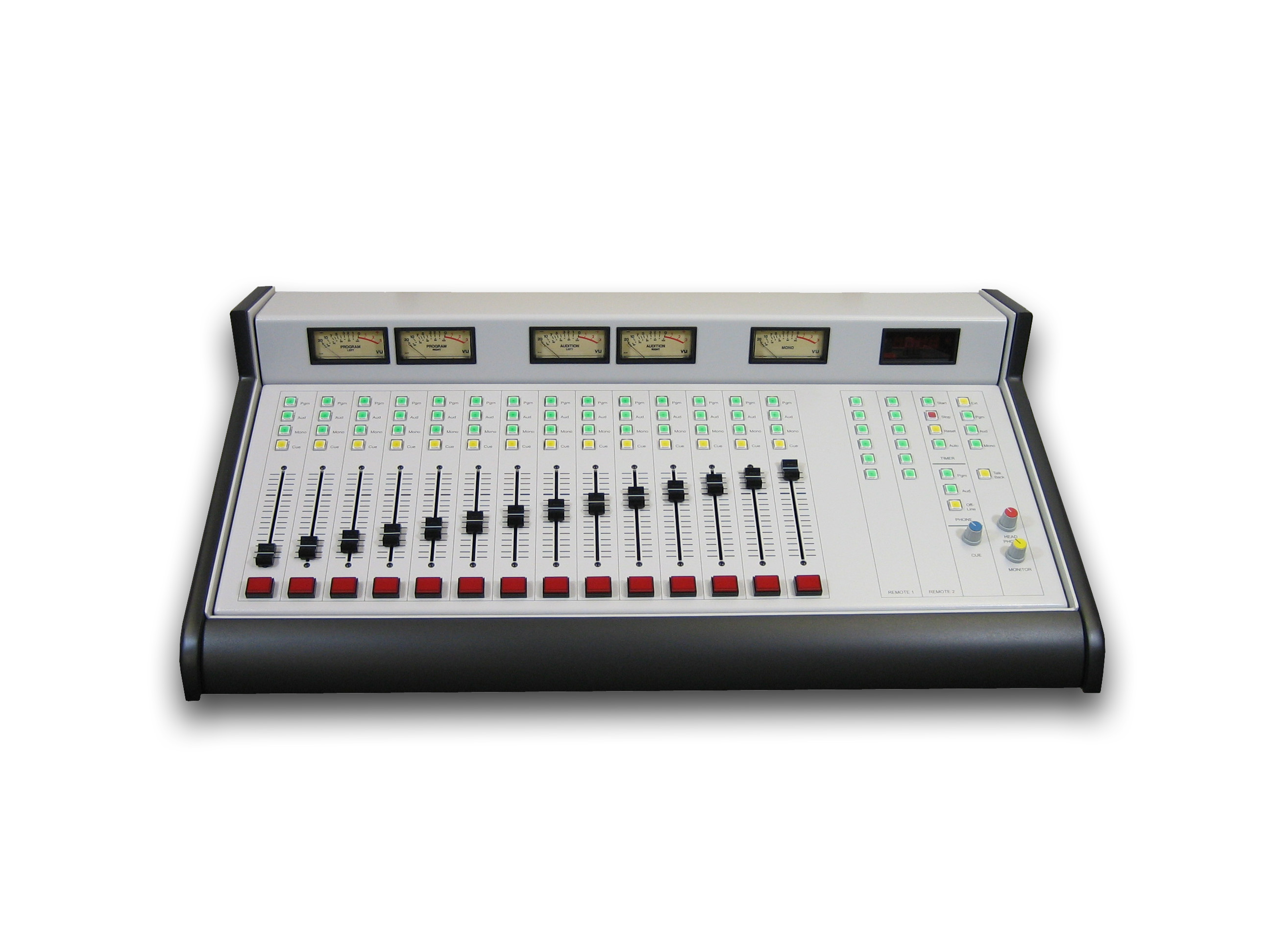

X-Mixer Digital Console                                   You Want Digital, You Got Digital





List Prices. Standard Mainframe, choose the amount of digital inputs.

X-Mix 14-14: $5,995 msrp

2 Analog Mic Channels

10 Analog Stereo Line In Channels

2 AES-3 (software assignable) Channels



X-Mix 14-22: $6,995 msrp

2 Analog Mic Channels

10 Analog Stereo Line In Channels

10 AES-3 (software assignable) Channels



14 Channels. Digital / Analog Console. Flexible & Powerful.

14 Channels - supports BOTH digital and analog sources.

Penny & Giles - top of the line Penny & Giles slide faders.

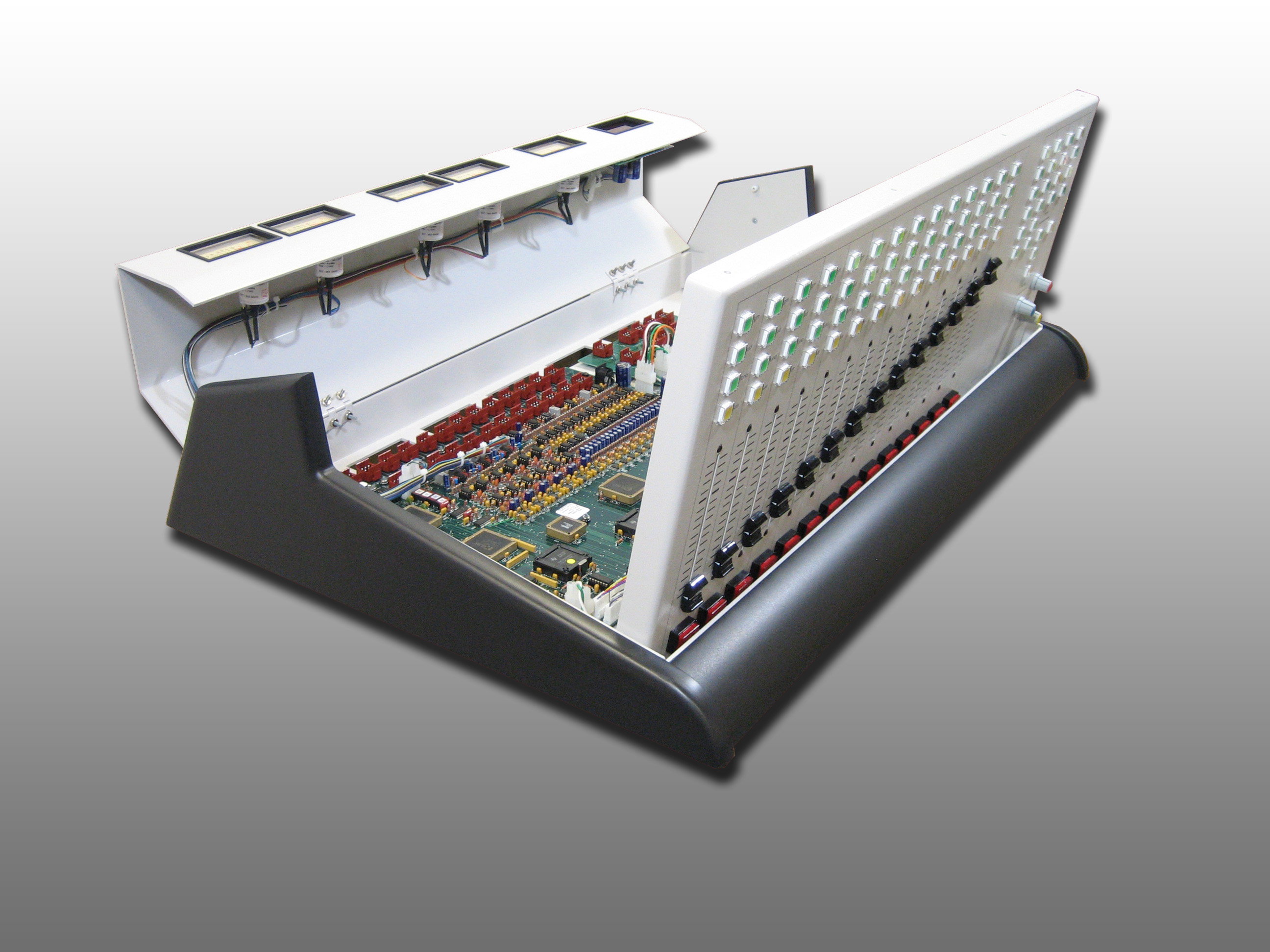

Easy Access - the clamshell design makes it easy to access for installation and maintenance.

Real VU Meters - stylish and easy to use VU meters for Program, Audition buses.

No More RF - has balanced inputs & outputs for use in high RF environments.

Built Tough - professional throughout, with multi-million operation LED lighted switches and

electronic audio switching. Built for ANY environment.

Socketed IC's - most IC's are socketed for ease of service.



2 Stereo & 1 Mono output buses. Program & Audition with mono output.

Active balanced - All outputs & inputs are active balanced.

Stereo or Mono - The console features 3 mixing buses, stereo cue, monitoring

for a control room and studio.



Phone line system. Connect your phone hybrid for a powerful phone system.

Phone Channel - powerful telephone interface for ‘on air’ talk shows and

‘off-line’ recording and communication.



Low Profile Design. Defining what attractive is.

Modern & Timeless - The ARC series has a modern low profile & sleek design that is timeless.

Hidden Wiring - hide your wiring with the through table design.



110 or 220VAC. Autosensing international power supply.

Autosensing - power supply autosenses between 110 & 220 VAC for domestic or international installations.



AND MUCH MUCH MORE

Check out our brochures for more information.





CONSOLE DIMENSIONS:

Depth - 21.5 inches

Height - 7.5 inches

Width - 32.5 inches



SHIPPING DIMENSIONS:

BOX #1

Weight - 44 pounds

Depth - 43 inches

Height - 25 inches

Width - 12 inches

*These values may change at any time without notice



PACKAGE CONTENT:

X-Mix 14 (14-14 or 14-22)

Power Supply (110V or 220V auto-sensing)

Cable Assembly, Molded, DB9MF, 10-ft, serial

Crimp Tool

NE5532N IC (qty 4)

Housing - 6 position - mini (qty 10)

Housing - 9 position - mini (qty 16) (qty 26 for 14-22 model)

Terminal - amp-mini, 26-18 AWG (qty 204) (qty 303 for 14-22 model)

Software setup disk

Operations Manual



X-Mixer Digital Console                                   You Want Digital, You Got Digital



STEP 1 - Choose between 14 or 22 inputs

There are 2 different X-Mixer models. The only difference is the number of digital inputs. The 14-14 has 2 AES-3 digital inputs, while the 14-22 has 10 AES-3 digital inputs. For not a large jump in price, we recommend going with the 14-22 model for more flexibility.



STEP 2 - Purchase the console & wiring

Either purchase direct from us, or get a great deal from one of our authorized dealers. Save time & money by purchasing premade wiring for the ability to plug & play!



STEP 3 - Upgrade your automation

New studio? Upgrading your studio? Now is the time to purchase or upgrade your automation. Be sure to check and see if there are any BUNDLE DEALS with our automation software. You may qualify to save hundreds!

X-Mixer Digital Console                                   You Want Digital, You Got Digital





Either purchase direct from us, or get a great deal from one of our authorized dealers. Be sure to check and see if there are any BUNDLE DEALS with our automation software. You may qualify to save hundreds!



Save time & money by purchasing premade wiring for the ability to plug & play!
