The DARC family of products offers a flexible, AoIP (Audio over IP) solution for various broadcasting setups. Here's a breakdown of how it works:
- DARC Virtual Console Software (Required): Handles all the audio mixing, processing, and control in a virtual environment. It can manage everything digitally, making setup more flexible and adaptable to your specific needs. DARC Virtual comes standard with all Surface bundles.
- Simple IP Nodes (Required): Physical devices where you connect audio inputs and outputs. These nodes work with Dante-enabled devices, integrating seamlessly with your network. Or you may also use any Dante enabled hardware to act as your node.
- DARC Surface (Optional): An optional hardware control surface that interacts with the DARC Virtual Console. This acts as a physical interface for controlling your audio processing and routing, similar to a traditional console but more streamlined and optional.
This system is designed to be scalable, fitting both smaller and larger studio setups. It simplifies AoIP by separating the control (software) from the physical connections (Simple IP nodes) while offering the option for tactile control through the DARC Surface.

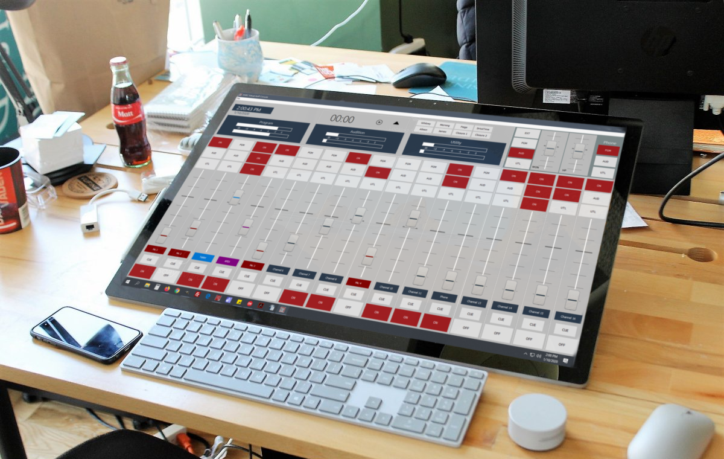

Software Mixer Console
The mixer engine interface that works with Dante or ASIO audio inputs & outputs.
DARC Virtual
Digital Mixing Software Console
3 Stereo Outputs
- 4, 8, 12 or 16 Channels
- 8 Phone Mix-minus buses for telephone hybrids.
- Analog inputs & outputs
- Windows 10 & 11 compatible.
- Dante AoIP interstudio ethernet connectivity. Works with any Dante enabled hardware.
- AES67 AoIP support.
- Works with ASIO USB interface sound cards.
Physical Control Interface
The DARC family includes physical console interfaces that work with the DARC Virtual software. These controllers give you the ability to control the DARC Virtual using physical knobs, buttons and faders. These interfaces are optional.
DARC Surface
Physical controller interface.

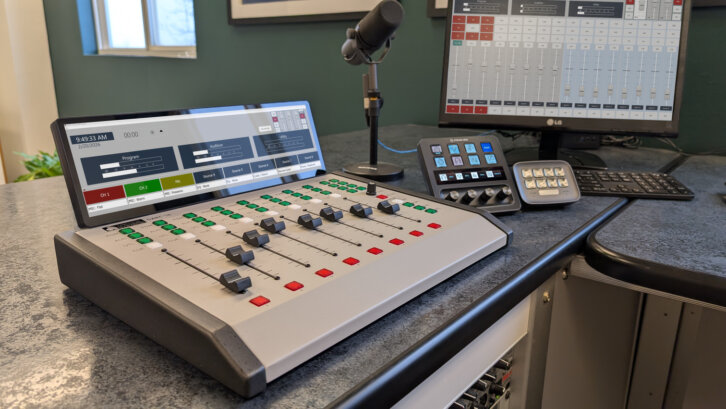

DARC S8
- 8 Fader Channels.
- Program, Audition, Utility, and Cue buttons for each channel.
- DARC Virtual software included.
- 8 programmable soft keys.
- Volume control & toggle Monitor, Headphone and Cue.
DARC S15
- 15 Fader Channels.
- Program, Audition, Utility, and Cue buttons for each channel.
- DARC Virtual software included.
- 8 programmable soft keys.
- Volume control & toggle Monitor, Headphone and Cue.

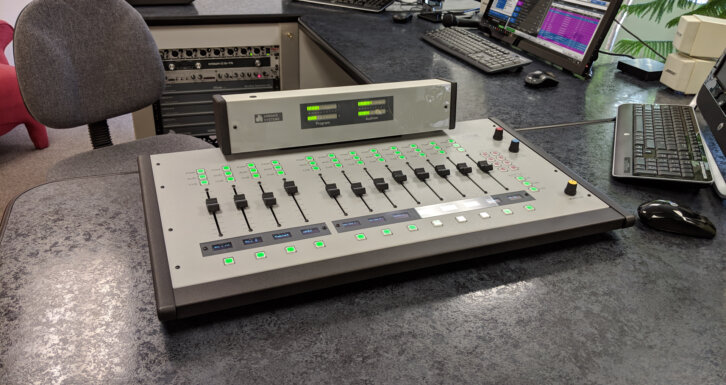

DARC Surface 12
- 12 channel control surface.
- DARC Virtual software included.
- OLED channel displays.
- Meter level display.
- 8 programmable soft keys.
- Volume control for channel inputs and monitoring.
DARC Surface 8
- 8 channel control surface.
- DARC Virtual software included.
- OLED channel displays.
- Meter level display.
- 8 programmable soft keys.
- Volume control for channel inputs and monitoring.
Audio I/O Nodes
The nodes are the backbone of your AoIP system. This is where you connect your hardware to your AoIP network, including microphones, phone hybrids, headphones, cue speakers, Program/Audition/Utility outputs, etc. Once the audio is ingested, you will have access to all audio I/O anywhere on your network, providing you with the ultimate in flexibility.

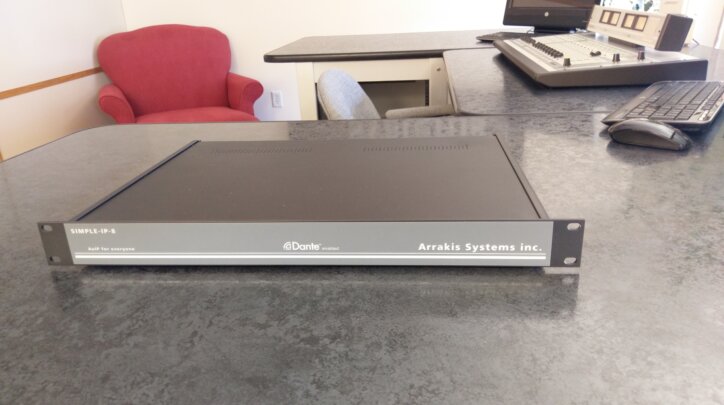

Simple IP
Audio Input / Output nodes.
Simple-IP-8A
- 8 in x 8 out (mono) / 4 in x 4 out (stereo)
- Works with Dante AoIP network protocol.
- Analog Inputs & Outputs.
Simple-IP-16A
- 16 in x 16 out (mono) / 8 in x 8 out (stereo)
- Works with Dante AoIP network protocol.
- Analog Inputs & Outputs.
