H10
10 Channel - 2 Stereo Outputs.
The best of both worlds.

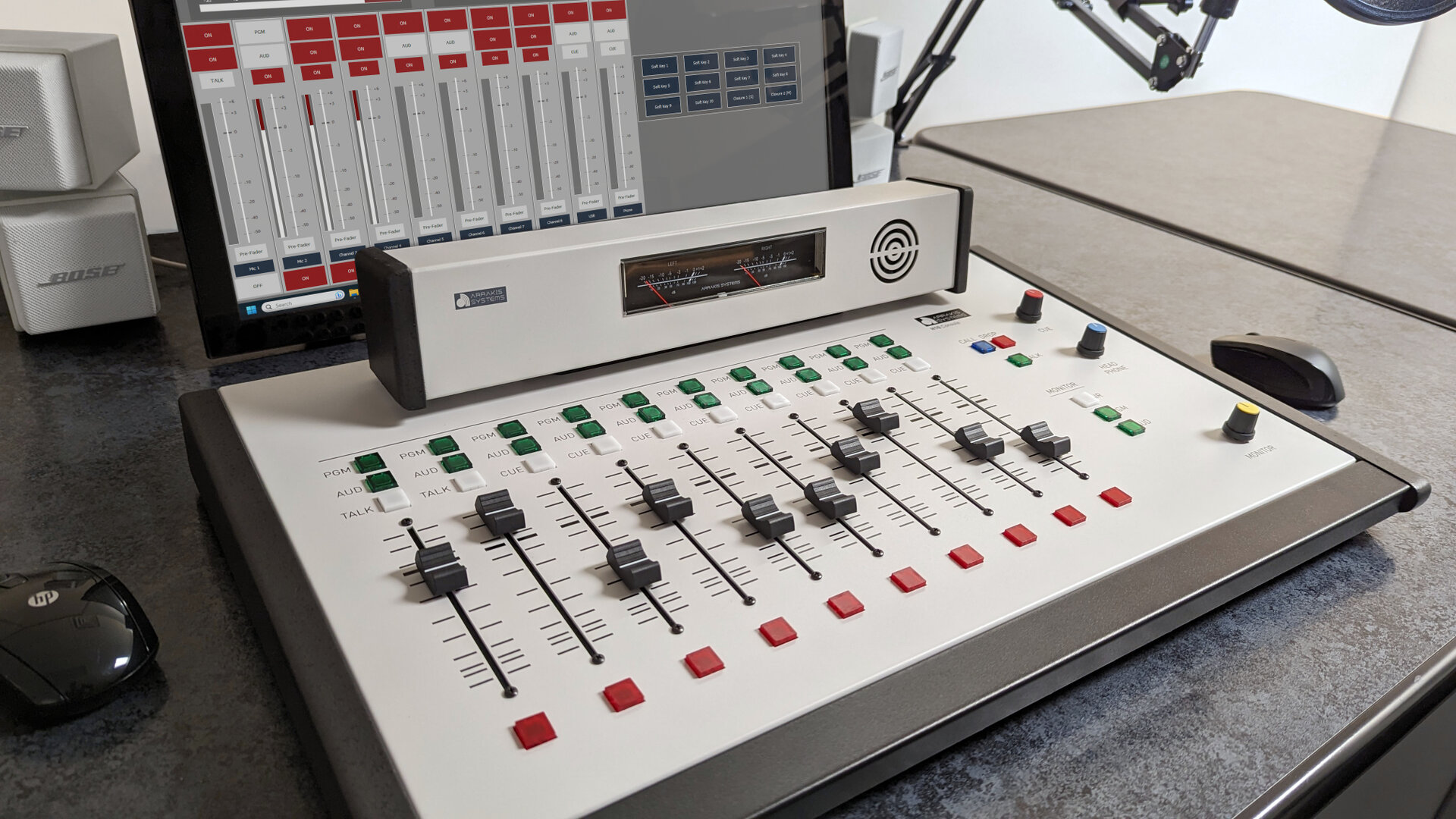

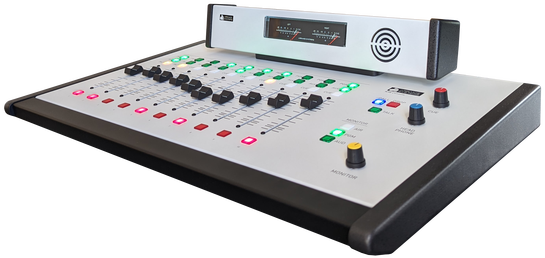

The H-10 Console offers the best of both worlds, combining the simplicity, reliability, performance, and ease of operation of analog with the flexibility and power of digital technologies. It's a perfect blend of traditional and modern features, providing an exceptional experience for all studios.
Hybrid Analog Consoles
10 channel analog console with software control.
3299.00 $
H10-Lite $2,349
(Analog Meters, No controller capabilities)
______________
H10 $3,299
(Analog Meters)
______________
H10-LED $3,299
(LED Meters)
Software Controllable
The H-Series Controller software is included with the H10 studio console mixer, empowering users to control the console remotely from anywhere in the world. With this software, you can easily turn channels on or off, monitor input levels, and utilize user presets to swiftly switch between different profiles, ensuring a seamless and efficient audio management experience.
NOTE: H-Series Controller software and hardware are not included with the H10-Lite version.
Bluetooth comes standard with the H10 console, providing you with the convenience of effortlessly connecting any Bluetooth audio device for seamless audio playback. With this feature, you can easily connect your smartphone to put callers on-air or stream recordings with ease, making your broadcasting experience even more versatile and user-friendly.
Reliable.
The H10 is meticulously designed for reliability, offering long-lasting performance and easy maintenance with socketed ICs. Its switches and faders are engineered to endure multi-million operations, ensuring flawless functionality in critical environments. Skilled technicians can breeze through maintenance thanks to accessible components, while the user-friendly interface allows for easy operation by anyone.
RF Resistant.The H10 features both balanced and unbalanced inputs and outputs, making it highly effective at resisting RF interference for a clean broadcast. The balanced inputs utilize RJ45 connectors.
More Power.
Experience the unparalleled power of the H-10 console.
With 10 channels at your disposal, you'll revel in its increased versatility and a host of incredible features, all while benefiting from its compact footprint.
The console comes with 2 built-in mic channels, and if you desire more, you can effortlessly expand to 4 mic channels with the optional ARC-MIC-PRE mic preamp.
Indulge in the convenience of Bluetooth, balanced & unbalanced inputs, and the freedom to control the console from anywhere in the world through our intuitive HSeries Controller software. The H-10 truly takes your studio mixer experience to the next level.
5 Types of Channels
Microphone
- 2-4 Mics. 2 built-in mic preamps. Add 2 more mic inputs with the ARC-MIC-PRE.
- High performance mic preamp channels, with XLR inputs.
- 48VDC phantom power for condenser mics (Optional purchase on our Accessories page).
- Channel 1 features a Talk button to talk to a Studio monitor.
- LED illuminated switches.
Stereo Line Input
- 7 Stereo Inputs, giving you enough channels to connect all of your devices.
- Trim pot adjustable for each channel.
- Both active balanced RJ-45 & unbalanced RCA.
- 2 stereo output buses. Both balanced and unbalanced outputs.
- LED illuminated switches.
Phone
- Phone Mix- channel comes standard, allowing you to connect to a phone hybrid.
- Audio & Logic connections available to connect to hybrid.
- Listen off-line to a caller using the Cue button.
- Talkback button enables you to talk to the caller off-air.
- Mix minus feed to the caller is a mix of Pgm-Aud.
- LED illuminated switches
Bluetooth
- The Bluetooth channel allows you to connect any Bluetooth device to channel 10 on the board.
- Connect your phone using the Bluetooth channel to take calls and put callers on-air. You can even use a landline phone that has a bluetooth headset option for higher quality and reliability.
- Connect your tablet wireless to the board, to play audio over the air.
- Quality comes standard with the latest in Bluetooth technology.
- A wireless connection protects your board from the repetitive connecting and disconnecting of equipment. Excellent for studios with high traffic.
USB
- Play & Record in digital with a Windows or Mac OS PC.
- USB sound card functionality to work with any software.
- Simple connect using standard USB cable.
- Play audio from your USB device directly onto your board.
- Record audio from your board using any 3rd party software.
- LED illuminated switches.
Software Controllable
- Software controllable, the H Series Controller gives you access to your console anywhere in the world.
- Customizable user presets that give you the ability to quickly switch between different shows or presets.
- Automatic restore after power loss.
- Custom channel labels.
- Logic control.
- Pre-fader remote control.
- Monitor levels and diagnose any possible audio issues remotely.
- Up/Down timer.
- Utilizes world class security protocols.
Not available on the H10-Lite
Switches
Momentary switches are 5 million operation & LED illuminated, for an extremely long life. No more need to replace switches or bulbs.
Headphone
The headphones have both a stereo, balanced, line level output for an external amp, and a headphone amp output for driving low impedance headphones.
Power Supply
The power supply is auto-sensing 110-220VAC. Certified: UL, CE, CS, CB. Perfect for use anywhere in the world.
Linear Faders
Conductive plastic faders for highest possible resolution and life. Dust covers designed to protect and prolong the life of the fader.
Balanced RJ45 Connectors
Utilizes world standard balanced RJ45 connectors.
Balanced & Unbalanced Outputs
Pgm output has both XLR balanced, & RCA unbalanced outputs. Both Pgm & Aud include mono mixdowns.
Analog VU Meters
The H-10 features large, high-precision meters on the front panel, enabling the user to visualize the dynamics of their audio feeds.
With backlighting these high performance meters only enhance the luxurious and exceptionally elegant aesthetic of the H-10.
Comes with built in Cue Speaker.
LED Meters
Enhance your H-10 studio experience with our captivating LED VU meters. These meters provide real-time audio monitoring and precise signal clarity. Elevate your studio to new heights with this perfect fusion of stunning visuals and exceptional audio performance.
Requires external cue speaker, or the use of headphones to listen to Cue.
H10-Lite
When software control isn't needed, but the ultimate in savings is.
One of the best perks of the H10 console is the ability to control it remotely via software. However, not every studio needs this feature; some may prefer the already powerful H10 console without the software control. For studios like this, the H10-Lite is the way to go. The H10-Lite includes all the features of the standard H10 console but lacks the controller hardware and the H-Series Controller software.
Upgradeable
That said, the H10-Lite can be upgraded at any time. Simply send the unit back to us with a return shipping label, and we can perform the upgrade. You only need to pay the difference between the H10-Lite and the standard H10.
- Upgrades typically take 3–5 business days.
- Be sure to pack the board in the original packaging.
- Any additional repairs will cost extra.
- If your original one-year warranty has expired, the warranty will be extended by up to an additional 90 days.
- Contact consolesupport@arrakis-systems.com to arrange the upgrade.
