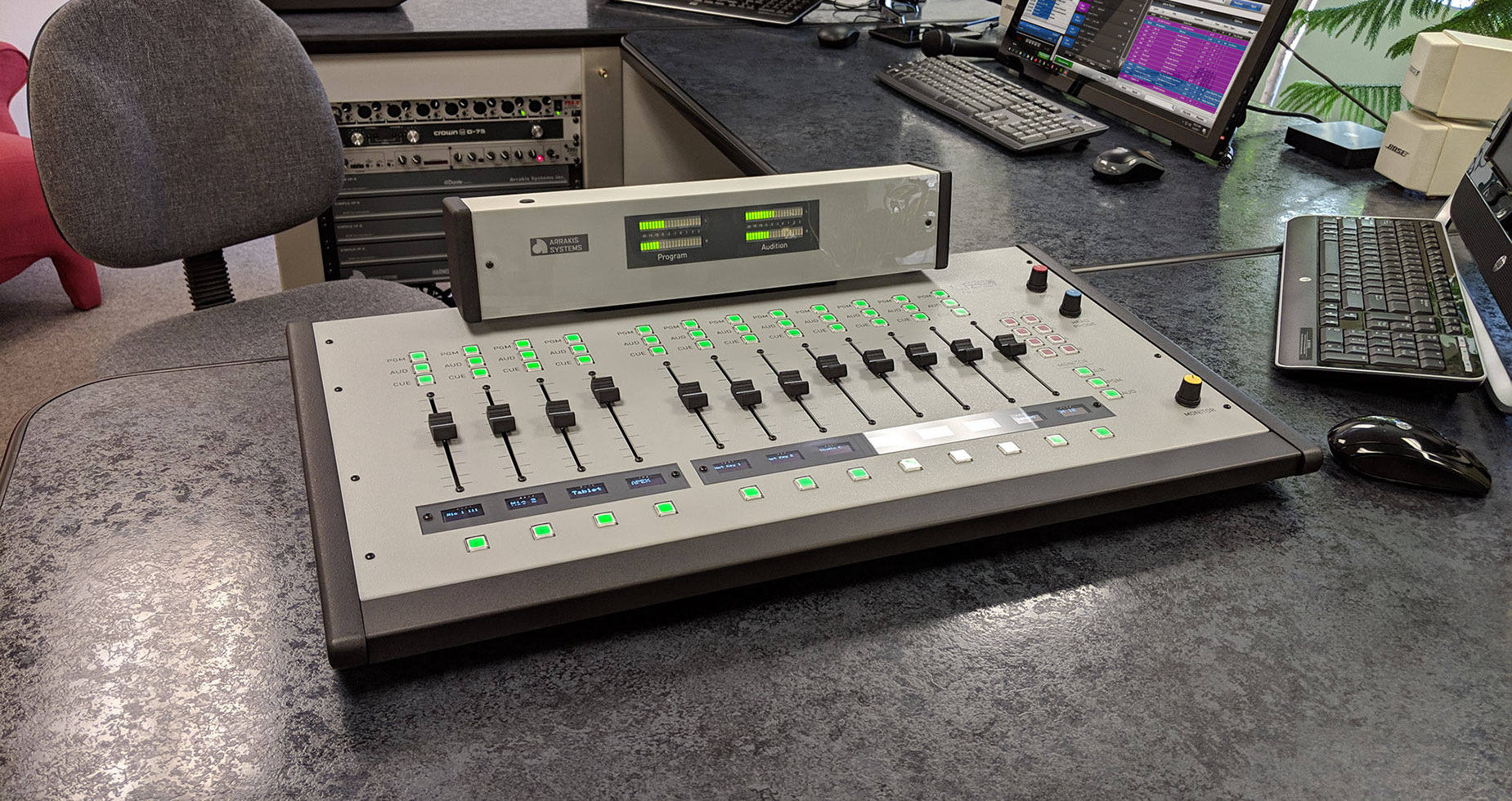

Audio over IP does not need to be complicated or expensive. With the DARC Surface, you can control any Dante network audio source. Mix, adjust levels, everything you need for an On-Air or production room console.
A Digital AoIP Console designed for you.
starting at $3,700.
The DARC Surface is the ultimate companion to the DARC Virtual software. The DARC Surface is an optional component, that gives you a physical interface for control of the DARC Virtual software console. The Surface gives you physical faders, on/off buttons, soft keys, meters, etc. This board is designed for those who want the benefits of a software console, but with the ability to have a physical control surface.
Need it faster? Email sales for options.
Digital AoIP Broadcast Console.
8, 12 or 16 input channels.
2 Stereo output buses.
Simple & Effective
8 or 12 Channel Models. DARC Surface comes in 2 different models depending on the number of channels that you need. This means that you can choose what size best fit your needs. Whether the 8 with its small profile yet powerful design, or the 12, with all the faders you could ever need.
DARC Virtual Console Software. The DARC Virtual Software comes included in the package deals. The DARC Surface works in harmony with the DARC Virtual Console software.
Simple IP. The DARC Surface, along with the DARC Virtual Console, will work with any Dante enabled device on your network. This includes our Simple IP units, which have Analog Inputs & Outputs. Learn more.
Programmable Inputs & Outputs. Control anywhere in the world.
The DARC Surface is a Digital AoIP console. Being digital means that your audio is handled digitally, and there is no signal degradation within the board. It is protected from RF, and is very flexible.
Being AoIP means that the DARC Surface has access to any audio input or output on your Dante local network. Quickly select your inputs and outputs via the DARC Virtual Console software. OR swap assignments via the 4 programmable buttons on the DARC Surface.
Being Windows based, you can also use any remote control app to control your board anywhere in the world with an internet connection.
The DARC Surface is the ultimate in power, flexibility and value.
Stylish & Functional

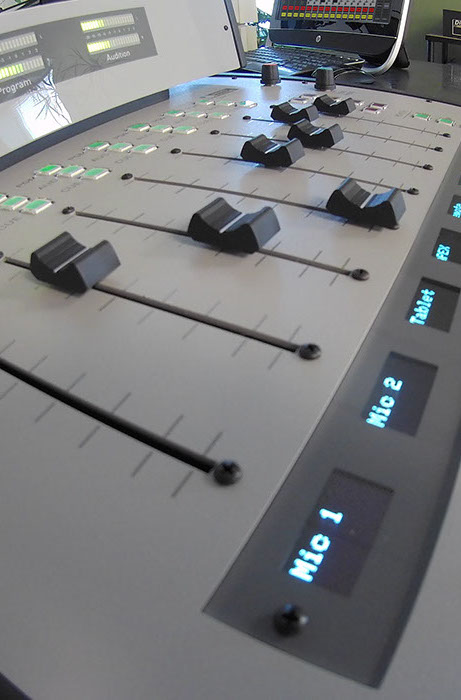

OLED Displays. The DARC Surface utilizes long life OLED displays. These displays show what source channels have been selected for each channel. These OLED displays are high contrast, easy to read and beautiful to match.
LED VU Meters. Complimenting the DARC Surface, we gave it two pairs of bright, 20 segment stereo bargraph LED VU Meters. These meters have an extremely long life span utilizing the latest in LED technology.
LED Switches. Momentary switches are 5 million operation & LED illuminated, for an extremely long life. No more need to replace switches or bulbs.
Compartmentalized. The DARC-Surface is sleekly designed with its compartmentalized design. All of your audio input and output wiring goes to your Simple IP units, while the DARC has limited wiring to make your studio stylish and functional.
Pure Digital Control Surface Experience
The DARC Surface is a pure digital control surface. All audio inputs & outputs are connected through the Simple IP Surface. And all audio is mixed via a Windows PC and the DARC Virtual software. The DARC Surface is simple a physical control surface that gives you control over the DARC Virtual software.
Installing the DARC Surface is quick and easy. The only connections on the DARC Surface are a USB and an RJ45 for the DARC Surface LED Meter input.
Microphone
Simple IP Required
▪ 1 to 16 Mic channels. Your choice, your configuration. Simply connect your mics to the Simple IP inputs. Each Simple IP box allows you to connect up to 4 mic channels. Channels are software assignable.
▪ Mic Pre Needed. Simple IP are all high level stereo inputs. Mic channels require an external mic preamp with mono to stereo wiring.
▪ Mic Monitor Mute. Mic channels will automatically mute the monitor output when activated.
Stereo Line
Simple IP Required
▪ 1 to 16 Inputs. Software assignable line inputs. Simply connect your audio source outputs to the Simple IP inputs. Each Simple IP box allows you to connect up to 4 Stereo Line inputs.
▪ Analog I/O. Analog RJ45 inputs and outputs with the Simple-IP-8A.
▪ +4dBu or -10dBu analog inputs. Simple-IP-8A is jumper selectable between balanced +4dBu and unbalanced -10dBu inputs.
▪ LED illuminated switches.
Phone
Simple IP Required
▪ 1-8 Phone channels. Within the DARC software, choose to assign one to eight of your I/O on the Simple IP to a phone mix-minus to connect to your phone hybrid.
▪ Mix-Minus. Once a channel has been assigned as a Phone channel in the software, it will configure to audio to work with your phone hybrid.
▪ Talkback. With the Phone channel setup, the first mic channel will have a Talkback function that allows you to talk to the caller off line.
▪ LED illuminated switches.
Logic Outputs
Optional Add-on
▪ 2 Logic Output. As an optional add-on, add logic outputs to the DARC family. This USB logic output connects to your PC, and is controlled via the DARC Virtual Console software. This is programmable to turn on On-Air Lights, trigger phone hybrids, etc... This option gives you 2 relay outputs.
▪ 8 Logic Output. 2 outputs not enough? Get the 8 logic output USB control instead.
2 Output Buses
Program - Audition - Monitor - Cue - Headphone
▪ PGM, AUD. DARC can assign output control to any output on your Dante network. This may be one of our Simple IP units, which has 4 stereo outputs per box.
▪ Monitor, Cue & Headphone outputs. Utilize the Cue function built in to the DARC software to play audio off-air through your monitor, cue or headphones. Monitor, Cue and Headphones all connect to your Simple IP unit.
▪ Mic Monitor Mute. Mic channels will automatically mute the monitor output and play audio through the headphones when activated. Talk back audio plays through headphones as well.
Assets come standard.
RF Free
DARC Surface is a digital surface and does not have audio run through it. It is therefore a pure signal and RF free. All Stereo inputs and outputs on the Simple IP are also balanced for RF resistance.
Switches
Momentary switches are 5 million operation & LED illuminated, for an extremely long life. No more need to replace switches or bulbs.
Linear Faders
Conductive plastic faders for highest possible resolution and life. Dust covers designed to protect and prolong the life of the fader.
Power Supply
The power supply is auto-sensing 110-220VAC. Certified: UL, CE, CS, CB. Perfect for use anywhere in the world.
DARC Virtual Console
The DARC Virtual Console comes standard with DARC Surface bundle packages. This gives you tons of additional features at your fingertips.
Remote control from anywhere in the world.
4, 8, 12, or 16 input channels models.
3 stereo output Buses.
1-8 Phone Mix-minus buses for Telephone hybrid(s).
Analog or Digital Audio Inputs and Outputs.
Windows compatible.
Dante AoIP interstudio ethernet connectivity.
AES67 AoIP support to work with any network.
What you need to get started
To get started with DARC Virtual is extremely simple. You only need two components:
(1) Audio Hardware - You need to connect your audio sources, such as your microphones, headphones, phone systems, automation, etc... This can be to a Dante audio network, or with a standalone ASIO USB Audio Interface.
For AoIP, you can do this using Simple IP nodes, Dante AVIO adapters, Dante Virtual Sound Card, or any other Dante enabled device. Once your device(s) is connected to the Dante network, this step is complete.
For a standalone unit, you can use a USB Audio Interface, such as the Behringer UMC1820.
(2) DARC Virtual software - Then all you need is the DARC Virtual console software ran on a Windows PC (not included). This software is designed to recognize Dante devices on your Local Area Network (LAN), and then gives you the ability to control any of these devices. Or, connect the USB Audio Interface via USB to the PC running the DARC Virtual, and select the ASIO device in the DARC Virtual software.
DARC Surface (Optional) - You can now connect other optional equipment to your Dante network to expand your setup as necessary. Whether you want to use a physical control surface such as the DARC Surface, or add more equipment to your Dante AoIP network such as Simple IP. It is all expandable to as large as you want or need.
Bundle Packages
DARC Surface 8 with Simple IP
$3,700 ($2,600 in savings)
▪ DARC Surface 8 Console ($1,500)
▪ DARC Virtual 16 Console software license FREE
▪ Qty 2 Simple IP ($2,000)
▪ PC not included
DARC Surface 12 with Simple IP
$5,200 ($2,900 in savings)
▪ DARC Surface 12 Console ($2,000)
▪ DARC Virtual 16 Console software license FREE
▪ Qty 3 Simple IP ($3,000)
▪ PC not included
Click to Expand
Technical Specifications
DARC Digital AoIP Console
DARC Surface. Digital Console. Flexible and powerful.
LED Meters - two pairs of bright, 20 segment stereo bargraph LED VU Meters.
No More RF - No audio is ran through the DARC Surface, and Simple IP uses
balanced inputs & outputs which excel in high RF environments.
Socketed IC's - all ic's are socketed for ease of service. The main processor is also
swappable if damaged.
OLED Displays - each channel has a dedicated high resolution OLED display.
This shows what source is currently selected on the channel.
Remote Control from Anywhere. Connect and Control.
Windows Based - Any remote access software is capable of controlling your DARC unit. This means that you can turn channels on/off, control volume, etc, from anywhere you have an internet connection. Whether from your phone, your home PC, you are in control.
Dante & AES67. AoIP done right.
Dante - DARC Surface utilizes the Dante audio networking protocol. This protocol has hundreds of manufacturers, and is world recognized.
AES67 - Dante utilizes AES67, which allows you to connect any AES67 enabled device.
Dante Virtual Soundcard - The Dante Virtual Sound card is included in the price, and enables you to put ASIO sources from your PC to the Dante network.
Dante Controller - Is a free software from Dante, that allows you to route input and output audio on your Dante local network.
Dante AVIO- The Dante AVIO hardware are extremely affordable input and output adapters. Quickly and easily connect any analog or digital hardware device, and stream the audio to the Dante network.
More details can be found here: www.audinate.com
2 Stereo output buses. Program & Audition with mono mixdowns.
Active balanced - All outputs & inputs are active balanced on Simple IP hardware.
Stereo or Mono - Both stereo & mono outputs for 2 output buses on Simple IP hardware.
Listen - Monitor, Cue & Headphone output to cue and talk to callers off air.
3 types of Inputs. More options, more power.
1 - 16 Mic Channel - Your choice, your configuration. Simply connect your mics to the Simple IP inputs. Each Simple IP box allows you to connect up to 4 mic channels. Channels are software assignable.
Stereo Line level Channel - Using Simple IP, the stereo input channels are appropriate for source devices like CD players, MP3 players, network feeds, etc. With balanced inputs, it allows you to safely connect to sources, that are originated in other studios, where the long wiring could introduce hum & noise.
Telephone Channel - Easily connect to an external telephone hybrid using Simple IP. The caller can talk to you through the Cue system while a 'Push to Talk' button in the software enables the first mic to talk off-line to the caller.
Phone line system. Connect your phone hybrid to Simple IP for a powerful phone system.
Phone Channel - dedicate a channel to easily connects to an external telephone hybrid.
Talkback Cue System - the caller can talk to you through the Cue system while a Talkback button enables the Control Room mic to talk off-line to the caller.
Analog RJ45 I/O.
Simple IP 8A - Has RJ45 analog inputs and outputs.
Windows & Touchscreen Compatible. DARC Virtual Console.
Windows - DARC Virtual Console works with the Windows OS. See the support page to view the required specs.
Touchscreen - Use any Windows OS based touchcreen with the DARC Virtual Console. DARC is specifically designed to be easy to use with touchscreens.
Low Profile Design. Defining what attractive is.
Modern & Timeless - The ARC series has a modern low profile & sleek design that is timeless.
110 or 220VAC. Autosensing international power supply.
Autosensing - power supply autosenses between 110 & 220 VAC for domestic or international installations.
AND MUCH MUCH MORE
Check out our brochures for more information.
CONSOLE DIMENSIONS:
Surface 8
Depth - 15 inches - 381mm
Height - 6 inches - 153mm
Width - 19 inches - 483mm
Surface 12
Depth - 15 inches - 381mm
Height - 6 inches - 153mm
Width - 26.25 inches - 667mm
SHIPPING DIMENSIONS:
Surface 8
Weight - 40 pounds - 18kg
Depth - 37 inches - 940mm
Height - 19 inches - 483mm
Width - 12 inches - 305mm
*These values may change at any time without notice.
PACKAGE CONTENT:
Surface 8, 12 or 16 Console
Operations Manual
Power Supply (110V / 220V auto-sensing)
RCA audio cable
RJ45 cable (qty 4)
USB cable
Expandable Images:
Accessories
SIMPLE-IP
AoIP for Everyone.
Need audio over IP? Simple-IP is the solution. Connect any analog or digital audio sources to Simple-IP putting your boards on the Dante network This simple and reliable solution will save you time and money.
Quickly connect any analog or digital audio source to play into a Dante audio network, at an extremely affordable price.
Configured PC
$1,099
Purchase a fully configured Dell Optiplex Micro from us. This PC will be ready for use out of the box to work with the DARC Virtual Console software. It will be ran in Kiosk mode and dedicated to the DARC Virtual Software for optimal reliability.
To qualify for software support for DARC, you must purchase a configured PC from us.
Learn more on our support page.
ARC-MIC-PRE
Need microphone channels?
The ARC-MIC-PRE is a 2 channel mic preamp that can be directly connected to your balanced RJ45 console line inputs on the Simple IP Nodes. This converts two of your line inputs into mic level inputs.
APEX-Live is the ultimate live assist software for any Internet or Broadcast radio station. It is flexible, with customizable user interfaces; and powerful with numerous features. Use it in tandem with APEX, or as a stand alone software. And is FREE with our broadcast consoles.
Other Accessories.
Need cables, additional power supplies, phantom power supply, or other gear to help you get started? Go here.
