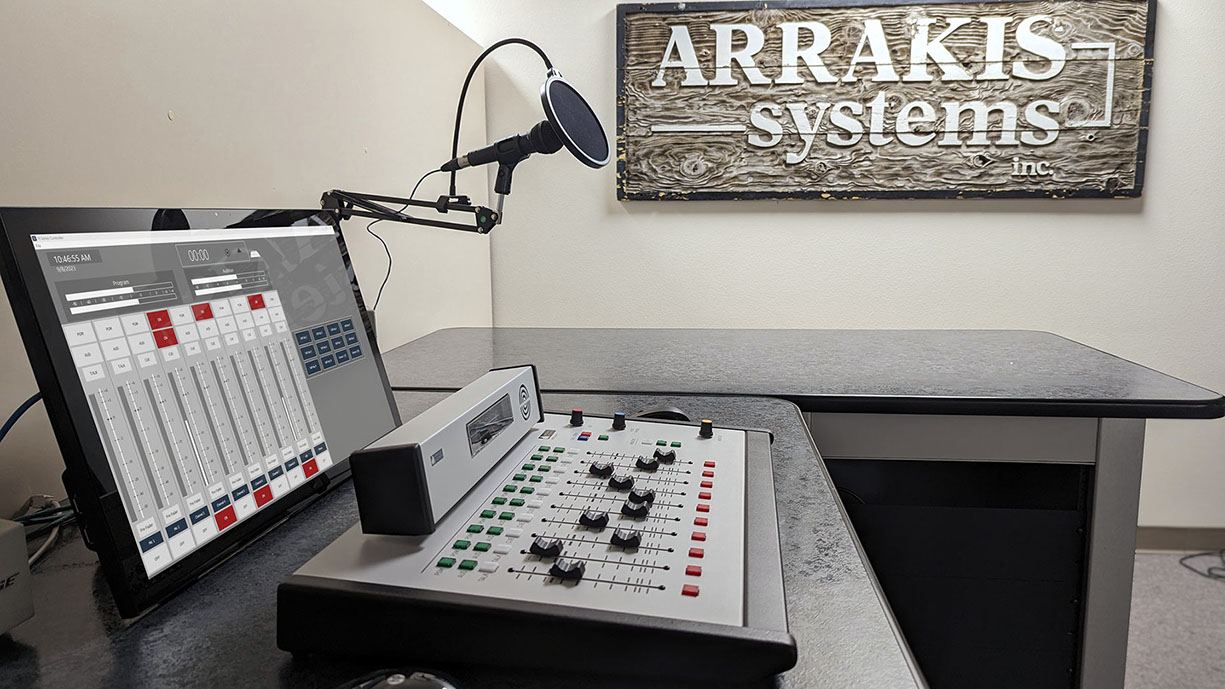

H-10
10 Channel - 2 Stereo Outputs.
All power, and no exceptions.
The H-10 Console offers the best of both worlds, combining the simplicity, reliability, performance, and ease of operation of analog with the flexibility and power of digital technologies. It's a perfect blend of traditional and modern features, providing an exceptional audio experience for all users.
The H-Series Controller software is included as a standard feature with the H-10 studio console mixer, empowering users to control the console remotely from anywhere in the world. With this software, you can easily turn channels on or off, monitor input levels, and utilize user presets to swiftly switch between different profiles, ensuring a seamless and efficient audio management experience.
Learn more.
Bluetooth comes standard with the H-10 console, providing you with the convenience of effortlessly connecting any Bluetooth audio device for seamless audio playback. With this feature, you can easily connect your smartphone to put callers on-air or stream recordings with ease, making your broadcasting experience even more versatile and user-friendly.
Learn more.
Reliable.
The H-10 is meticulously designed for reliability, offering long-lasting performance and easy maintenance with socketed ICs. Its switches and faders are engineered to endure multi-million operations, ensuring flawless functionality in critical environments. Skilled technicians can breeze through maintenance thanks to accessible components, while the user-friendly interface allows for easy operation by anyone.
RF Resistant.
The H-10 features both balanced and unbalanced inputs and outputs, making it highly effective at resisting RF interference for a clean broadcast. The balanced inputs utilize RJ45 connectors.
More Power.
Experience the unparalleled power of the H-10 console.
With 10 channels at your disposal, you'll revel in its increased versatility and a host of incredible features, all while benefiting from its compact footprint.
The console comes with 2 built-in mic channels, and if you desire more, you can effortlessly expand to 4 mic channels with the optional ARC-MIC-PRE mic preamp.
Indulge in the convenience of Bluetooth, balanced & unbalanced inputs, and the freedom to control the console from anywhere in the world through our intuitive HSeries Controller software. The H-10 truly takes your studio mixer experience to the next level.
5 Types of Channels
Microphone
▪ 2 - 4 Mics. 2 Built-in mic preamps. Add 2 more mic inputs with the
ARC-MIC-PRE.
▪ High performance mic channels, with XLR inputs.
▪ High performance mic preamps.
▪ 48 VDC phantom power.
(optional, $69)
▪ Channel 1 features a Talk button to talk to a Studio monitor.
▪ LED illuminated switches.
Stereo Line
▪ 7 Inputs, giving you enough channels to connect all of your devices.
▪ Trim pot adjustable for each channel.
▪ Active balanced RJ-45 or unbalanced RCA (depending on model)
▪ 2 stereo output buses. Both balanced and unbalanced outputs.
▪ LED illuminated switches.
Phone
▪ Phone channel Mix- comes standard, allowing you to connect to a phone hybrid.
▪ Audio & Logic connections available to connect to hybrid.
▪ Listen off-line to a caller using the Cue button.
▪ Talkback button enables you to talk to the caller off-air.
▪ Mix minus feed to the caller is a mix of Pgm-Aud.
▪ LED illuminated switches.
USB
▪ Play & Record in digital with Windows or Mac PC.
▪ USB sound card functionality to work with any software.
▪ Simple connect using standard USB cable.
▪ Play audio from your USB device directly onto your board.
▪ Record audio from your board using any 3rd party software.
▪ LED illuminated switches.
Bluetooth
▪ The Bluetooth channel allows you to connect any Bluetooth device to channel 10 on the board.
▪ Connect your phone using the Bluetooth channel to take calls and put callers on-air.
▪ Connect your tablet wireless to the board, to play audio over the air.
▪ Quality comes standard with the latest in Bluetooth technology.

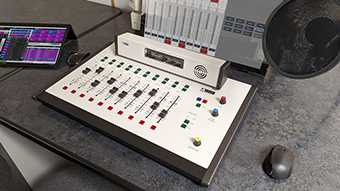

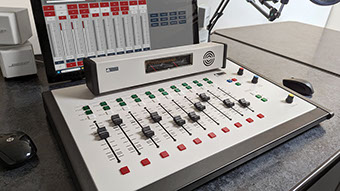

Analog VU Meters
Digital LED Meters

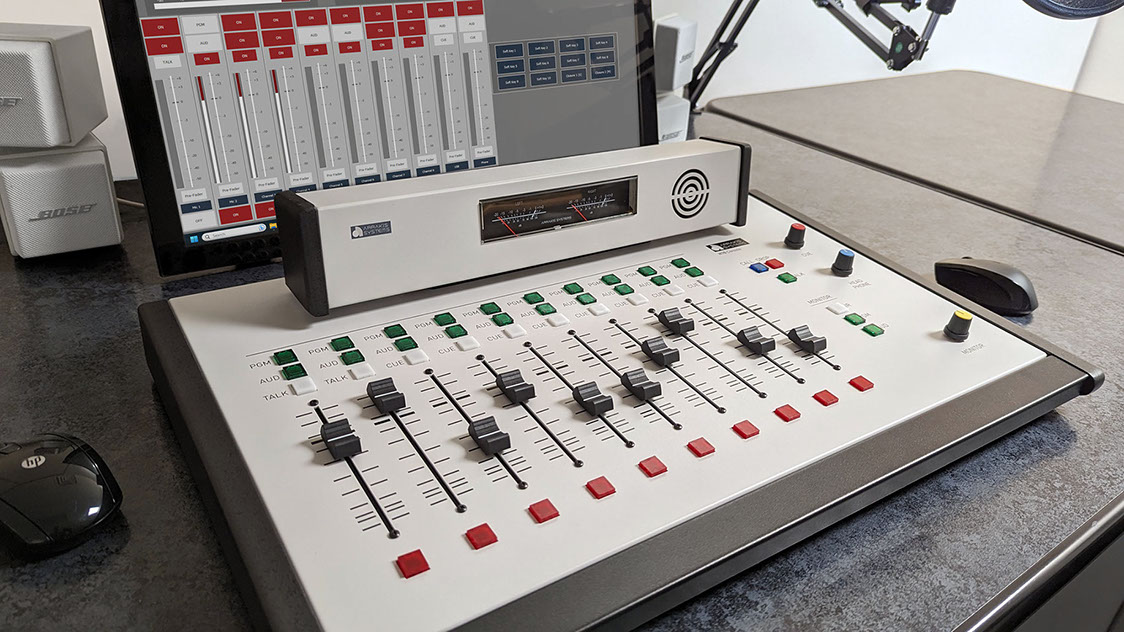

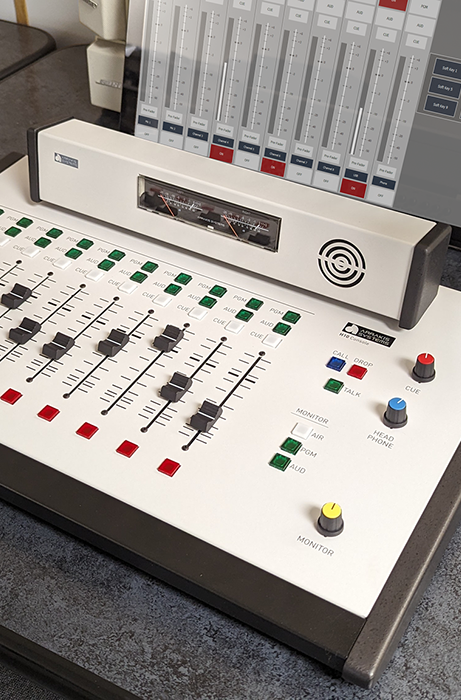

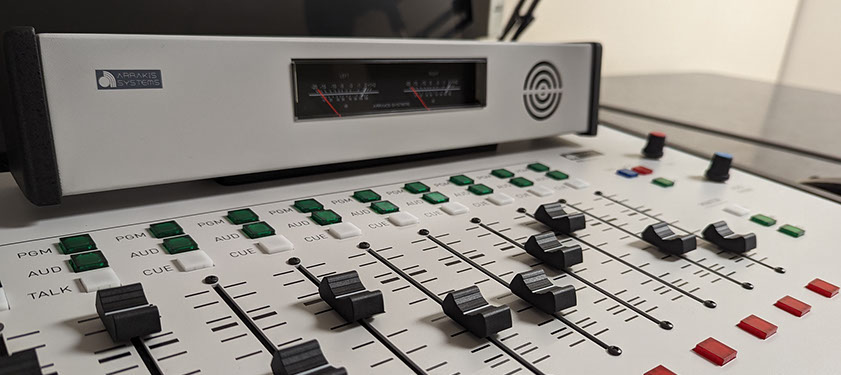

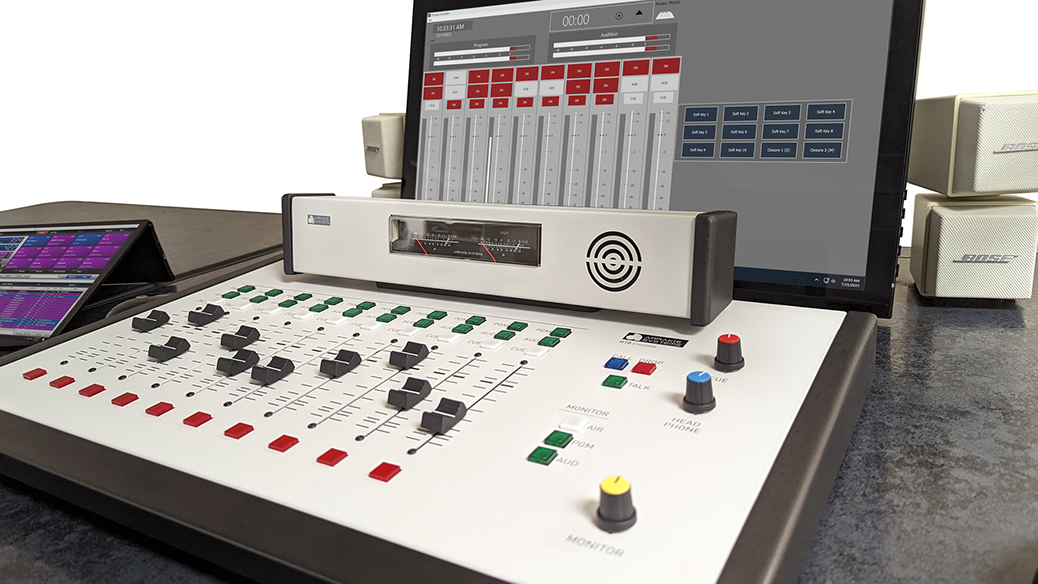

Analog VU Meters
The H-10 features large, high-precision meters on the front panel, enabling the user to visualize the dynamics of their audio feeds.
With backlighting these high performance meters only enhance the luxurious and exceptionally elegant aesthetic of the H-10.
Comes with built in Cue Speaker.

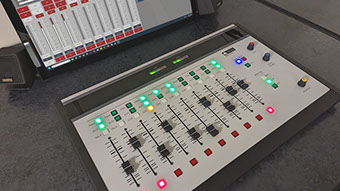

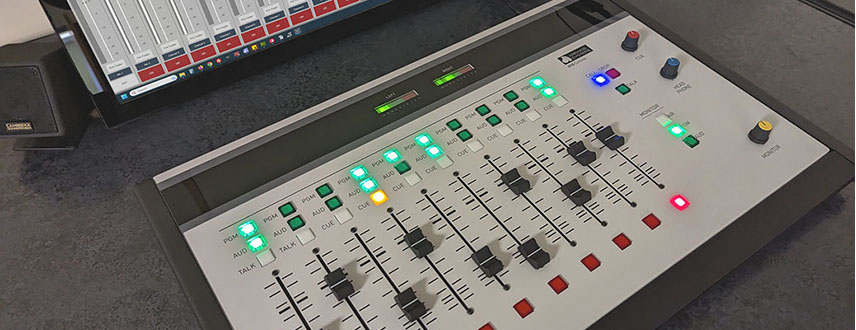

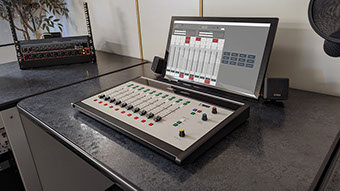

LED Meters
Enhance your H-10 studio experience with our captivating LED VU meters. These meters provide real-time audio monitoring and precise signal clarity. Enjoy a mesmerizing visual display that dances with the beats, while the sleek and durable design complements any setting. Elevate your studio to new heights with this perfect fusion of stunning visuals and exceptional audio performance.
Requires external cue speaker, or the use of headphones to listen to Cue.
Assets come standard.

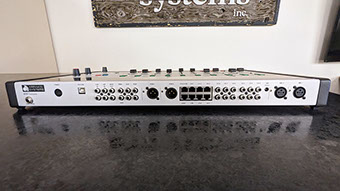

Balanced & Unbalanced Outputs
PGM output has both XLR balanced, & RCA unbalanced outputs. Both PGM & AUD include mono mixdowns.
Balanced RJ45 Connectors
All Stereo inputs are world standard balanced RJ45 connectors. Unbalanced RCA inputs are also included, giving you the ability to quickly connect consumer level sources.
Switches
Momentary switches are multi-million operation & LED illuminated, for an extremely long life. No more need to replace switches or bulbs.
Linear Faders
Conductive plastic faders for highest possible resolution and life. Dust covers designed to protect and prolong the life of the fader.
Power Supply
The power supply is auto-sensing 110-220VAC. Certified: UL, CE, CS, CB. Perfect for use anywhere in the world.
Headphone
Headphone system with stereo amp for 8ohm (or Hi-Z) headphones. Plus Monitor and Cue systems.
Click to Expand
Technical Specifications
H-10 Console Best of both worlds
Audio Performance Specifications
Stereo Line Input
Freq Response- +(-).5dB 20-20kHz
S/N- -82dB typ, +8dBu in, +8 dBu out
THD- .01% typ, +8dBu in, +8 dBu out
CMRR- -75dB typ 1kHz
Max Input- +23dBu, balanced
Mono Mic Input
Freq Response- +(-).5dB 20-20kHz
EIN- -115dBu typ, -50dBu in, +8 dBu out
THD- .05% typ , -50dBu in, +8 dBu out
CMRR- -60dB typ 1kHz
Impedances
Mic Input- > 2000 ohms
Line Input- > 10000 ohms
Outputs- < 100 ohms
System
Max Output- +23dBu balanced
Stereo Separation- -75dB typ 1KHz
Pgm to Aud XTalk- -80dB typ 1KHz
-70dB typ 20kHz
Cue to Pgm XTalk- -90dB typ 1KHz
-75dB typ 20kHz
On Air Light Logic: 12VDC/ground logic, 50mA max
Power Supply
110vac - 220 VAC, 50-60 hz, autosensing
Certified: UL, CE, CS, CB
External inline module: 3"W x 5 3/4"L x 1 3/4"D
Software Controllable. The H-10 console is compatible with the HSeries Controller software, enabling you to control your console from anywhere in the world. You can turn channels on or off, switch to prefader feeds, check audio levels, and more.
10 Channels. Analog Console. Flexible & Powerful.
10 Channels - With 10 channels, you can connect and achieve more. The 7 line-level
inputs allow seamless connections to audio players, MP3 players, and other analog sources.
Get a whole lot of board for an affordable price.
Mic Channels - Choose between 2 to 4 mic channels with optional 48V phantom power. 2 Mic Preamps are built-in. Purchase the optional ARC-MIC-PRE to get you 2 additional mic inputs.
Real VU Meters - Stylish and easy-to-use VU meters for Program & Audition buses.
LED Meters - Or choose LED meters for a modern look and feel.
No More RF - Equipped with balanced inputs & outputs for use in high RF environments.
Built Tough - Professional throughout, with multi-million operation LED lighted switches and
electronic audio switching. Built for any environment.
Socketed ICs - ICs are socketed for ease of service and extreme reliability.
2 Stereo output buses. Program & Audition with mono mixdowns.
Active Balanced - All outputs & inputs are active balanced.
Stereo or Mono - Offers both stereo & mono outputs for 2 output buses.
Listen - Features a Monitor & 8 ohm Headphone output, along with a built-in Cue speaker talkback system with a built-in amplifier.
5 types of Inputs. More options, more power.
2 - 4 Mic Channels - Channels 1 & 2 are dedicated mic channel preamps. Add the optional ARC-MIC-PRE to give you 2 additional mic channels.
Stereo Line Level Channels - Channels 3 - 8 are stereo, line level input channels appropriate for source devices like audio players, MP3 players, network feeds, etc. This balanced model allows you to connect to sources (such as a satellite feed) that originate in other studios where the wiring could be long and introduce hum & noise. It also includes unbalanced RCA inputs so you may connect unbalanced consumer audio devices.
PC-USB Input Channel - Play & Record in digital with a Windows or Mac PC, USB sound card functionality built directly into the module, record audio onto a PC, or playback audio from the PC over the air, & LED-illuminated switches.
Telephone Channel - Channel ten (10) is a dedicated telephone channel that easily connects to an external telephone hybrid. The caller can talk to you through the Cue system while a 'Push to Talk' button enables the Control Room mic to talk off-line to the caller. Just select the Air or Recording bus, then turn the channel on. What could be easier?
Bluetooth - Channel 10 is also a Bluetooth-enabled channel. This allows you to connect to most Bluetooth-enabled audio devices. Take calls or stream an audio feed.
Phone line system. Connect your phone hybrid for a powerful phone system.
Phone Channel - Channel 10 is a dedicated telephone channel that easily connects to an external telephone hybrid.
Talkback Cue System - The caller can talk to you through the Cue system while a Talkback button enables the Control Room mic to talk off-line to the caller.
USB input channel. Connect to any Windows or Mac PC for play & record.
Use Any Software - Utilize any automation or production software for play or record functions.
Playback - Easily play any audio from your PC onto the board and then over the air, including YouTube clips or any audio from your Windows or Mac PC.
Recording - Record audio coming from your board onto your Windows or Mac PC with any production software.
Easy Setup - Connect with a simple USB cable.
Start & Stop Automation - With our automation system, you can start & stop the automation system.
RJ45 Connections. Quick & easy install with RJ45 connections.
World Standard - All I/O is world-standard RJ45.
Quick Setup - As simple as plug and play.
Premade wiring - Optional cables are available for common connections such as XLR & RCA. Check the accessories section for more information.
Low Profile Design. Defines what attractive is.
Modern & Timeless - The ARC series has a modern low profile & sleek design that is timeless.
110 or 220VAC. Autosensing international power supply.
Autosensing - The power supply autosenses between 110 & 220 VAC for domestic or international installations.
AND MUCH MUCH MORE
Check out our brochures for more information.
CONSOLE DIMENSIONS:
Depth - 15 inches - 381mm
Height - 6 inches - 153mm
Width - 24 inches - 610mm
SHIPPING DIMENSIONS:
BOX #1
Weight - 32 pounds - 15kg
Depth - 28 inches - 711mm
Height - 18 inches - 458mm
Width - 11 inches - 280mm
*These values may change at any time without notice.
